Orbit

The Aerium Orbit is a single-band GNSS module, powered by the u-blox NEO-M9N, delivering L1 precision, reliable satellite acquisition, and robust performance in a wide range of environments. Paired with the ST LIS3MDL magnetometer, it provides accurate heading and orientation data to complement its positioning capabilities. Fully compatible with Pixhawk autopilots, Aerium Orbit is engineered for unmanned applications where compact design, reliable performance, and cost-effectiveness are essential.

General

• Single-band GNSS with L1 support for reliable global positioning
• Integrated SAW and LNA filters for improved signal reliability
• Compact 25 × 25 mm design, ideal for unmanned systems

Compatibility

• GNSS Receiver: u-blox NEO-M9N
• Magnetometer: ST LIS3MDL
• Fully compatible with:
  • Pixhawk and other Ardupilot/PX4-based autopilots
  • Standard JST-SH interface for easy integration

Resources

• 3D CAD Model

Mechanical

• Dimensions: 25 mm × 25 mm
• Weight: ~18 g

Electrical

General

• Input voltage: 3.3 – 12 V
• Logic level: 3.3 V
• PPS (Pulse Per Second) output supported
• Top View

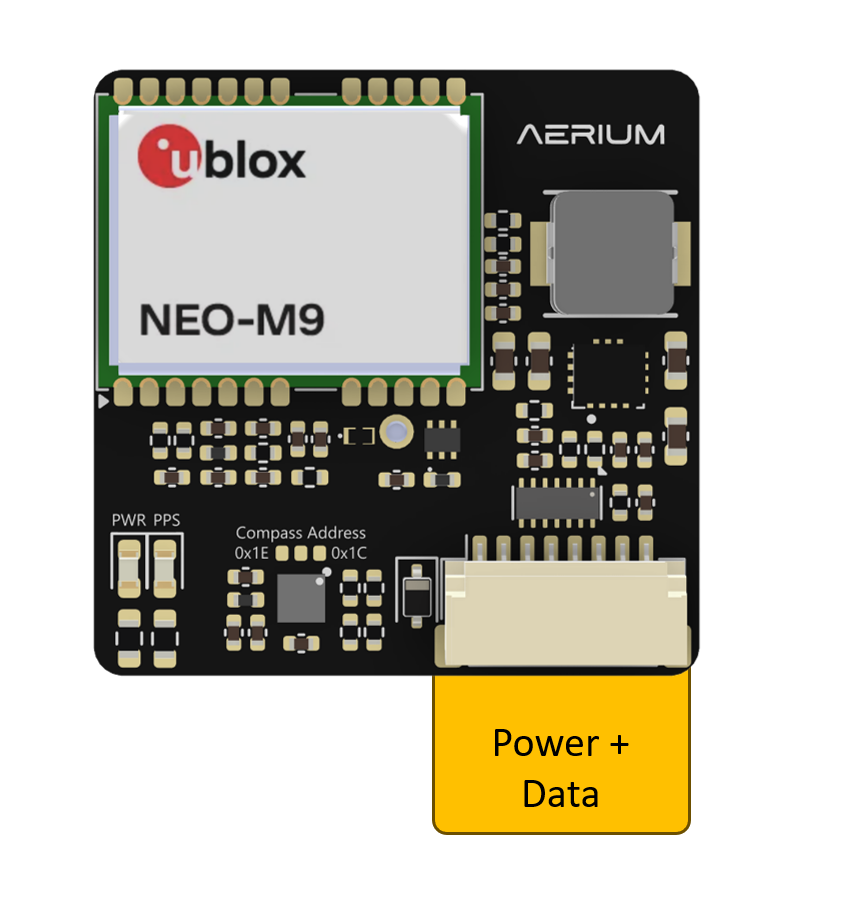

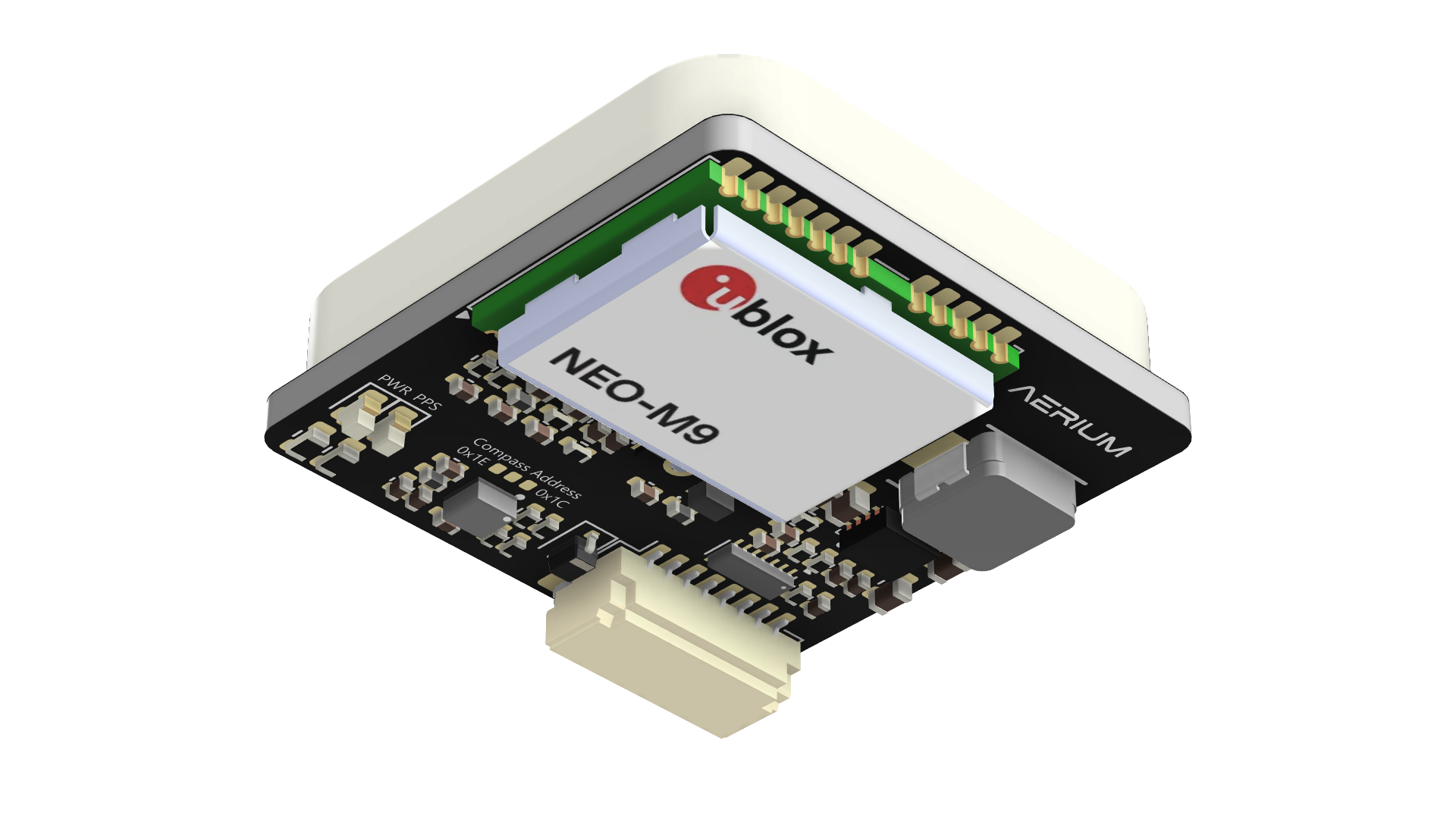

Pinout

Main Connector - Power + Data

• Connector Definition

  Type	Part Number	Series
  Board Connector	SM08B-SRSS-TB	JST-SH
  Cable Connector	SHR-08V-S-B	JST-SH

• Connector Pinout

  Pin	Name	Description	Voltage
  1	VCC	Power Input	3.3-12V
  2	RX	UART receive (3.3 V logic)	3.3V
  3	TX	UART transmit (3.3 V logic)	3.3V
  4	SCL	I²C clock (3.3 V logic)	3.3V
  5	SDA	I²C data (3.3 V logic)	3.3V
  6	PPS	Pulse-per-second output (3.3 V)	3.3V
  7	INT	Interrupt / Data Ready (3.3 V)	3.3V
  8	GND	Ground	GND
